Product List


When ordering Rapid Mat US, Inc products, ordering is simplified by referring to the Part Numbers. For our U.S. Government customers, you may refer directly to the Part Number or National Stock Number (NSN). For our International customers who wish to order Rapid Mat US, Inc products using the Foreign Military Sales (FMS) program, requesting the Part Number can expedite the FMS order. Our International customers may also place orders directly. Rapid Mat US, Inc is registered with the United States Department of State as an authorized exporter of Folded Fiberglass Mats and Runway Edge Marking Systems. Rapid Mat US, Inc also supplies all of the necessary anchor bolts, joining bushings, and tool sets. For information concerning these items or placing an order, please contact us via Email, Fax, or Phone.

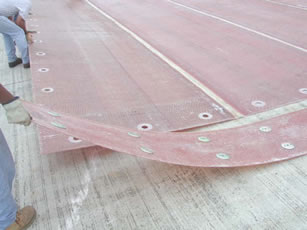

Item 1: Folded Fiberglass Mat FOD Cover Kit

Item Description
National Stock Number / Weights & Cubes
Part Number
Unit of Issue
1.1

Rapid Mat Operational Mat Assembly

Includes 2 each Operational Folded Fiberglass Mats (FFMs). Each FFM consists of 9 (6' X 30') panels (1/4 inch thick) linked by elastomer hinges and weighs approx 3,200 pounds. Each extended mat is 54' X 30': folded mat is 6' X 30' and 8-10" tall. Also includes 2 each (24' X 2') Joining Panels and 2 each (30' X 2') Joining Panels used to join FFM's.

NSN: 5680-01-368-9032

Weights & Cubes:
7,500lbs and 6'w X 30'l X 18"h

9139655
Each
1.2

Rapid Mat Operational Mat

One, single Operational Folded Fiberglass Mat (FFM), a component of the Operational Mat Assembly. No joining panels included. Used to order replacement or extra FFM's.

NSN: 5680-01-354-8332

Weights & Cubes:
3,400 and 6'w X 30'l X 9"h



9139656
Each
1.3

Rapid Mat Joining Panel (24' X 2'), Folded Fiberglass Mat

One, single Joining Panel (24' X 2'), a component of the Operational Mat Assembly. Used to order replacement or extra 24' Joining Panels.

NSN: 5680-01-363-0089

Weights & Cubes:
140 lbs and 24'l X 2'w X 0.50"h



9139638
Each
1.4

Rapid Mat Joining Panel (30' X 2'), Folded Fiberglass Mat

One, single Joining Panel (30' X 2'), a component of the Operational Mat Assembly. Used to order replacement or extra 30' Joining Panels.

NSN: 5680-01-363-0088

Weights & Cubes:
160 lbs and 30'l X 2'w X 0.50"h



9139637
Each
1.5

Rapid Mat Training Mat Assembly

[The USAF has removed this NSN from their inventory system and uses Operational Mats for their Training requirements. See Item 1.1, Operational Mat Assembly]



[NSN: 5680-01-354-8331]
This NSN no longer in the USAF inventory system

Weights & Cubes:
7,700lbs and 6'w X 30'l X 18"h

9139635
Each
1.6

Rapid Mat Training Mat

[The USAF has removed this NSN from their inventory system and uses Operational Mats for their Training requirements. See Item 1.2, Operational Mat ]



[NSN: 5680-01-368-9038]
This NSN no longer in the USAF inventory system

Weights & Cubes:
3,500 and 6'w X 30'l X 9"h



9139636
Each
1.7

B-1 Anchor Bolts

Concrete rock bolt, 5 to 6 inches X 3/4 inch. One kit is twelve steel containers with 30 bolts in each for a total of 360 bolts. Each container weighs approx 20 pounds. Recommend one kit per Operational or Training Mat Assembly.

NSN: 5340-01-371-2434

Weights & Cubes:
Twelve (12) each ammo cans at 20 lbs each

6 "w X 12 "l X 7.5"h



RM34550
360 bolts per kit
1.8

B-2 Anchor Bolts

Concrete rock bolt, 9 1/2 to 10 1/2 inches X 3/4 inch. One kit is twelve steel containers with 30 bolts in each for total of 360 bolts. Each container weighs approx 46 pounds. Recommend one kit per Operational or Training Mat Assembly.

NSN: 5340-01-364-2009

Weights & Cubes:
Twelve (12) each ammo cans at 46 lbs each

6 "w X 12 "l X 7.5"h



RM34950
360 bolts per kit
1.9

Type 3 Anchor

Used with B-2 concrete rock bolt, 9 1/2 to 10 1/2 inches X 3/4 inch. Consists of polymer two-part resin with 5-gallon container of Part A Resin, 5-gallon container Part B Resin, and twenty-four (24) 1000 ml plastic breakers. Type 3 Anchors used to anchor B-2 Bolts in asphalt overlay greater than six inches or all asphalt runway surface.

NSN: 6640-01-369-0926

Weights & Cubes:



B30001

1.10

Bushing Pack, Upper Joining Bushing

Steel bushing, plated, with bolt installed. Installs through FFM edge-hole into fixed Lower Joining Busing of Joining Panel when joining two mats. One kit is two (2) steel containers with 54 Upper Joining Bushings in each for a total of 108 bushings. Each container weighs approx 100 pounds. Recommend one kit per Operational or Training Mat Assembly.

NSN: 3120-01-369-5950

Weights & Cubes:
Two (2) each ammo cans at 100 lbs each

8"w X 18.5"l X 14.5"h



9139654
108 bushings per kit
1.11

Bushing Pack, Anchor Bushing

Steel bushing, plated. Bushing for Anchor Bolts to anchor FFM's to runway. One kit is three (3) steel containers. Each container weighs approx 33 pounds. One bushing required for each of the 54 Anchor Bolts to anchor one FFM used alone or two joined FFM's. Recommend one kit per Operational or Training Mat Assembly. May be ordered with 83 bushings per kit to provide 8 extra replacement bushings as reserve.

NSN: 3120-01-369-5952

Weights & Cubes:
Three (3) each ammo cans at 33 lbs each

6 "w X 12 "l X 7.5"h



9139653
75 bushings per kit

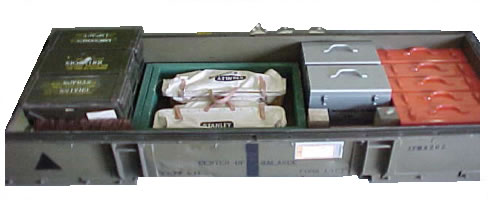

Item 2: Mat Support Tool Kit A *

Item # Description
NSN / Weights & Cubes
Part Number
Unit of Issue
2

Mat Support Tool Kit A *

The Tool Kit consists of a large metal FFM Tool Kit Container loaded with tools and items used in FFM operations.

NSN: 5680-01-372-3245

Weights & Cubes:
1,260 lbs
94"l X 34"w X 22"h



9139644
1 Each

Item 3: Edge Marker Set *

Item # Description
NSN / Weights & Cubes
Part Number
Unit of Issue
3

Edge Marker Set *

Components required to mark up to a 10,000-foot Minimum Operating Strip (MOS). Edge Markers are used to mark the threshold and departure ends, and sides of the MOS in 200-foot intervals. Set consists of the following: 140 Edge Marker Bases packed on four pallets with 35 Bases per pallet. Following items are packed in three (3) large fiberglass containers: 152 Edge Marker Tops, 100 Sand Bags, 150 Traffic Cones, two (2) shovels, and two (2) 200-foot tape measures.


(Not to Scale)

NSN: 5680-01-379-5818

Weights & Cubes:
3 each boxes at 480 lbs each and 46"w X 38"h X 106"l

4 pallets at 1200 lbs each and 32"x X 33"h X 49"l



EM001
1 Each

Item 4: Distance-To-Go Marker Set *

Item # Description
NSN / Weights & Cubes
Part Number
Unit of Issue
4

Distance-To-Go Marker Set *

Distance-To-Go Markers (DTGM) are place along the sides of the Minimum Operating Strip (MOS) to designate, in thousands of feet, the distance remaining to the end of the MOS. DTGM's are diamond shaped, free standing, 48 inches square sides, bright orange, with 2 inch black border, and 38 inch high, black numbers.

NSN: 9905-01-374-0882

Weights & Cubes:



DG0001
1 Each

Item 5: FFM Lifting Bar

Item # Description
NSN / Weights & Cubes
Part Number
Unit of Issue
5

FFM Lifting Bar

Steel lifting bar (spreader bar) to assist in handling Folded Fiberglass Mat Set with one 15k pound forklift. Provides the ability to easily handle FFMs with one forklift with a solid, stable, non-bending, non-flexing load. Lifting Bar greatly reduces the possibility of damaging mats through dropping or dragging mat ends along the ground, and reduces time and effort in moving FFMs. Comes with five (5) 11-foot nylon straps; one for each cross-bar.

NSN: 8145-01-526-2868

Weights & Cubes:
3,085 lbs
75" w X 31' l X 16" h



 FFMLB100
1 Each

Item 6: FFM Storage Crate

Item # Description
NSN / Weights & Cubes
Part Number
Unit of Issue
6

FFM Storage Crate

NSN: N/A

Weights & Cubes:



FFMSC100
1 Each

ITEM 7: Emergency Airfiled Lightying Systems (EALS)
7

Includeds all components required to support a 10,000 foot runway, back-up generator, packaged in six trailers. When installed, the EALS provides runway edge lighting, approach lighting, threshold/end lighting, taxiway lighting, visual glide slope indication, Distance-to-Go marker lighting, and obstruction lighting.

NSN: 6230-01-335-5078
1 Each

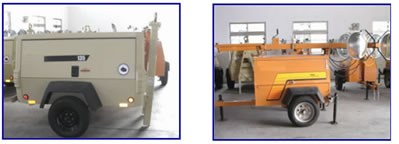

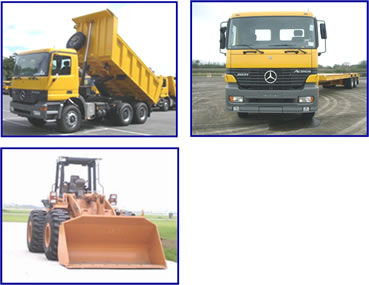

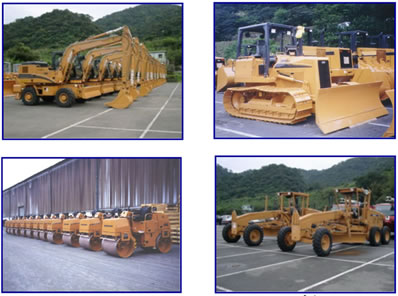

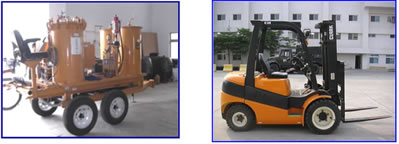

ITEM 8: Heavy Support Equipment, Operational Support Equipment

Rapid Mat US, Inc can supply all required heavy support vehicles and operational support equipment. Rapid Mat US, Inc works with the various manufacturers to ensure warranties being as of the date of arrival to the end customer. Rapid Mat US, Inc also ensures the vehicles and equipment can be supported in-country.




NOTE: The above items with an asterisk (*) are products that are based on set/kit pricing; component orders are priced according to quantities provided.
